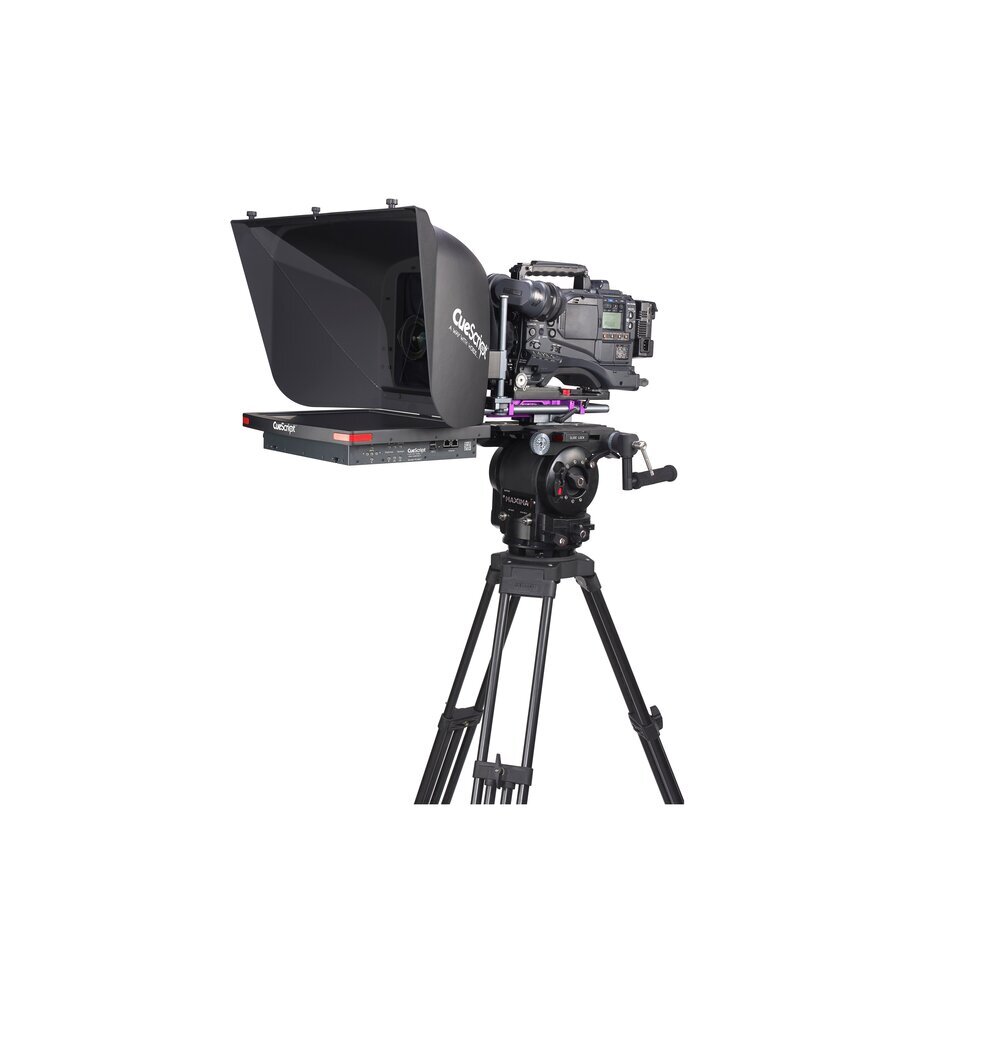

The CueScript 15” PTZ System comes with;

• CSM15 Teleprompter Monitor

• CSHPTZ Teleprompter Hood

• CSMPTZ Mount for Tripod & Lighting stand.

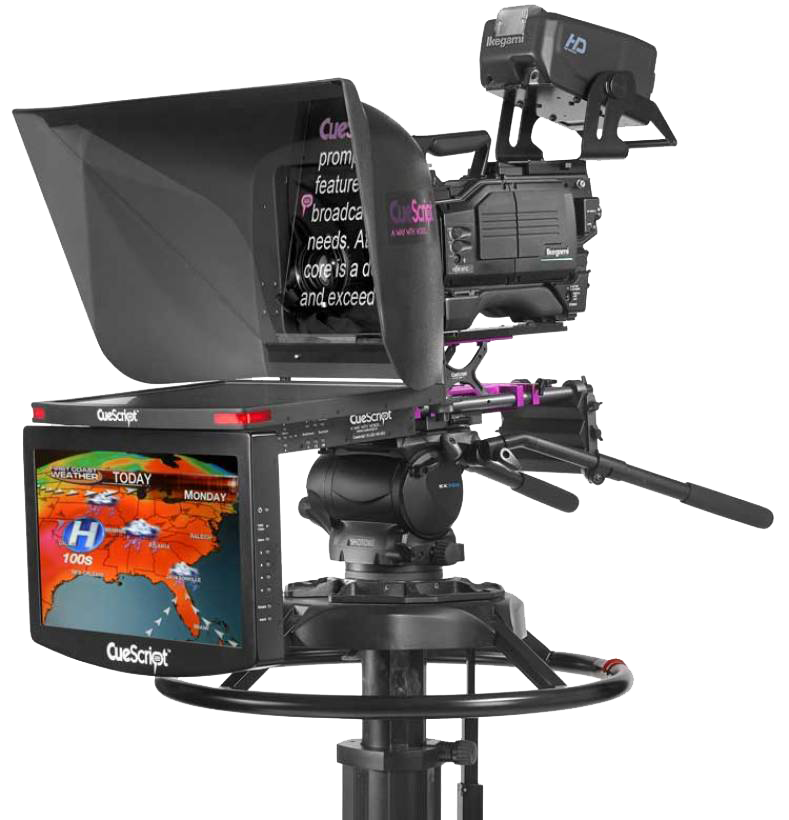

CSHPTZ Teleprompter Hood - Specifically designed with PTZ cameras in mind, the CSHPTZ Hood allows a camera to be mounted upside down within the prompter display, removing the operational limitations that other prompting displays have caused in the past by allowing the camera operator greater movement in the shots they can achieve.

CSMPTZ Mount for Tripod & Lighting Stand - The CueScript Mount has been designed with a PTZ camera in mind, it allows the camera to hang within the Teleprompter hood, ensuring greater tilt and pan controls are available to the camera operator.

CSM15 Teleprompter Monitor - The CueScript CSM15 prompter is for use in studio as well as on location. The sleek design has an integrated mounting system allowing for quick, easy setup and the LED high brightness screen means clarity of the autocue isn't impaired if shooting in daylight.

*Tripod not included

• CSM15 Teleprompter Monitor

• CSHM Teleprompter Hood

• CSMPL Large Mount Purple Plate

CSM15 Teleprompter Monitor - The CueScript CSM15 prompter is for use in studio as well as on location. The sleek design has an integrated mounting system allowing for quick, easy setup and the LED high brightness screen means clarity of the autocue isn't impaired if shooting in daylight.

CSHM Teleprompter Hood - CueScript's molded Teleprompter Hoods, available in medium (CSHM) or large (CSHL) sizes, have a unique curved design. The reasoning behind this was to remove the ridges found in conventional prompter hoods that reflect light from the monitor back into the camera causing flares.

CSMPL Large Mount Purple Plate - The CueScript Mount Purple has been designed with ease of use in mind, allowing seamless setup and balance without the use of tools.

• CSM19 19" CueScript CSM Teleprompter Monitor

• CSHL Teleprompter Hood

• CSMPL Large Mount Purple Plate

CSM19 19" CueScript CSM Teleprompter Monitor - The CSM19 is the largest of the CueScript monitor range but maintains the sleek design. Perfect for use with pedestals, box lenses and when the talent are a fair distance from the camera. Features include integrated mounting system, low power consumption, 3 mode power start up, user adjustable LED control panel and LED wrap-around cue lights.

CSHM Teleprompter Hood - CueScript's molded Teleprompter Hoods, available in medium (CSHM) or large (CSHL) sizes, have a unique curved design. The reasoning behind this was to remove the ridges found in conventional prompter hoods that reflect light from the monitor back into the camera causing flares.

CSMPL Large Mount Purple Plate - The CueScript Mount Purple has been designed with ease of use in mind, allowing seamless setup and balance without the use of tools.

• CSMV219 19" IP-Enabled CSMV2 Prompter

• CSHL Teleprompter Hood

• CSMPL Large Mount Purple Plate

CSMV219 19" IP-Enabled CSMV2 Prompter - Featuring CueTALK® (Ethernet) and SMPTE 2110 IP connectivity, as well as SD/HD/3G-SDI, Composite video and HDMI, all included as standard and native, so converters are not required.

CSHM Teleprompter Hood - CueScript's molded Teleprompter Hoods, available in medium (CSHM) or large (CSHL) sizes, have a unique curved design. The reasoning behind this was to remove the ridges found in conventional prompter hoods that reflect light from the monitor back into the camera causing flares.

CSMPL Large Mount Purple Plate - The CueScript Mount Purple has been designed with ease of use in mind, allowing seamless setup and balance without the use of tools.

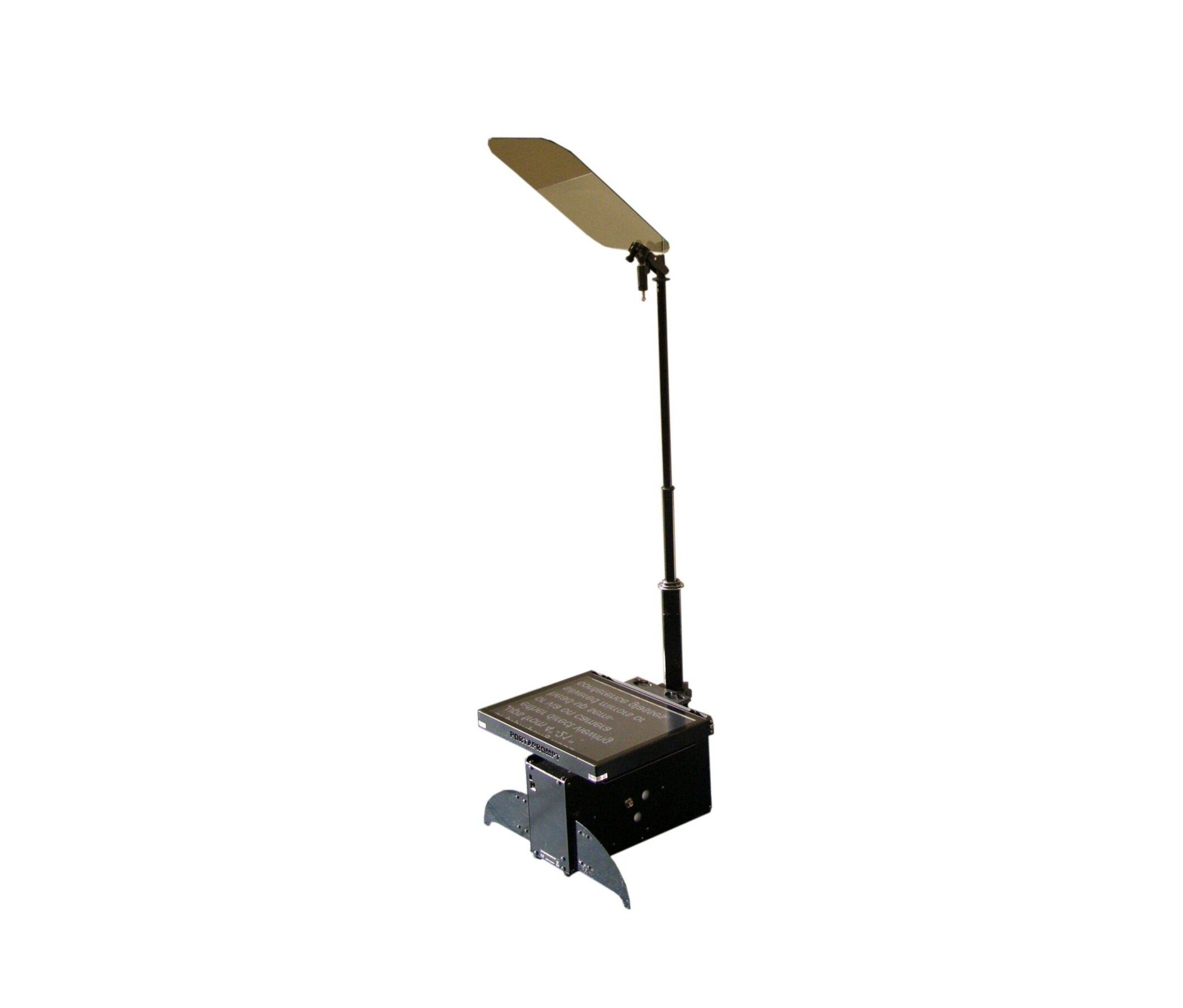

Designed with knowledge gained within rental divisions over the last 25 years, the Rise & Fall Motorised Stands offer:

• Ability to adjust the height of the stands automatically using programming or WinPlus Conference software

• Flexibility for all variations when used at award ceremonies, conferences and presentations

• Stand position control data is transmitted via BNC 75 Ohm cable

• Prompter video can be shared via an on-board video distribution amplifier with termination

Including Motorised Stand, Glass and Deskpad. Height can be adjusted locally by deskpad or remotely by WP-C Software

The newly designed MCG rig is significantly lighter and slimmer than our previous product (5.8kg compared to 9kg) making them easy to use and rig and also brings the benefit of reducing transport and shipping costs.

A new hand controller (A) for setting the required heights can control up 15 motorised poles over the network. The control signals are sent up a standard BNC cable.

MCG stands come into their own when there are many speakers who inevitably are of differing heights. Each presenter has their own stand height stored at rehearsals, which are instantly recalled by simply pressing their number on the key pad of the hand control.

A significant benefit of using MCG poles is that they can retract fully (B) so they can disappear beneath the stage if required and can be surrounded by “shroud covers”

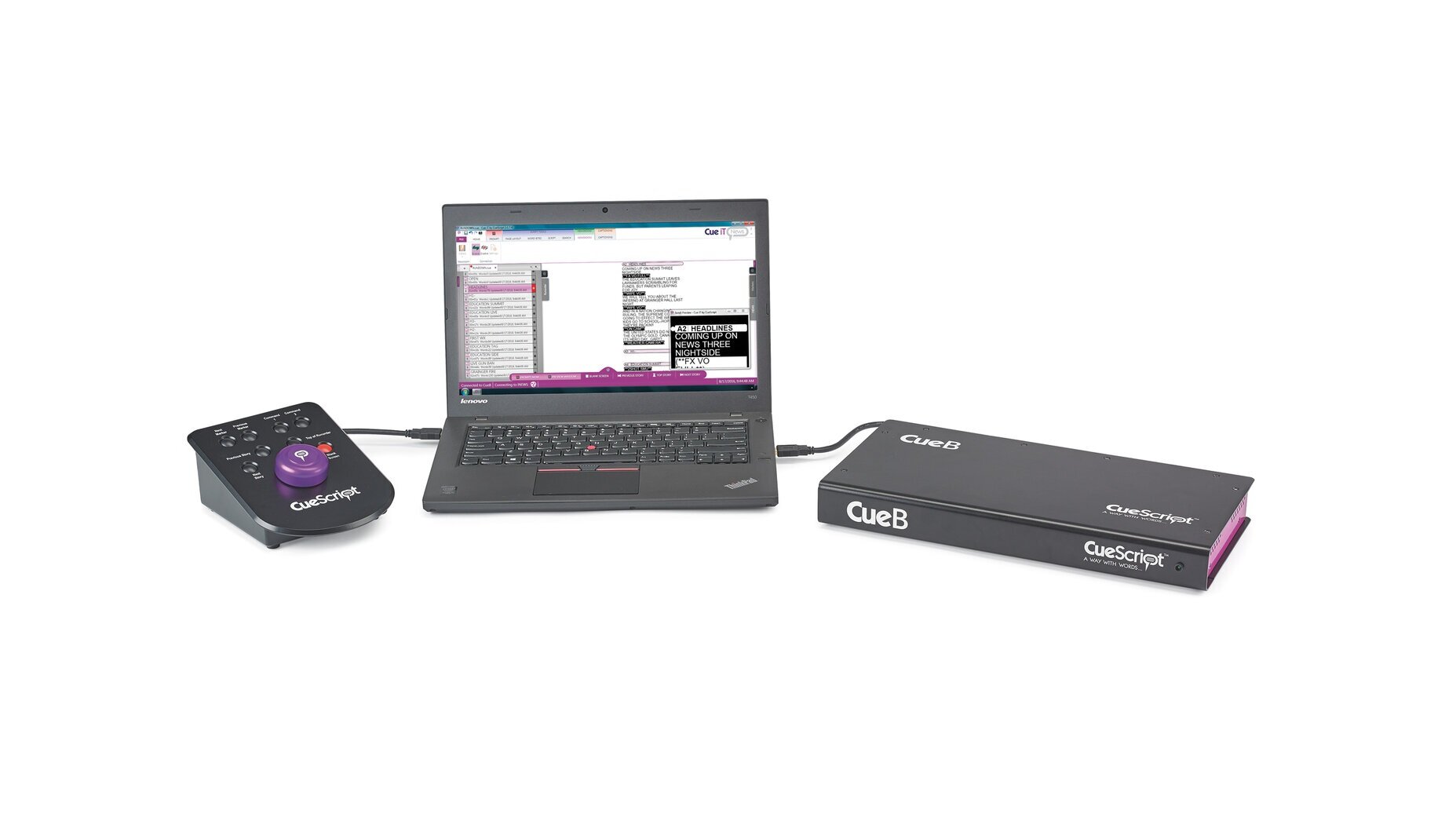

CueScript CueiT Software (For Windows and Mac) - A truly operator and production friendly prompting software has been born! CueiT has been developed with a deep understanding of what it is to be a prompt operator.

CueB CueiT Prompting Software Interface Device - The CueB is the hub of the CueScript prompting system, activating the CueiT software, enabling prompt output and control of the prompt output.

WinPlus is a Windows based teleprompting application that works together with XBox hardware.

Engineers, talent, IT departments and production choose WinPlus because it delivers the flexibility and smart design a professional broadcast environment demands. It is adaptable enough to be used in any studio, newsroom or location environment.

WinPlus teleprompting software is:

• Easy to load on virtually any computer

• Completely Unicode compliant

• Downloadable from Autoscript’s website

• Backed by remote support for assistance or training

• Feature-rich having been refined over many hours of studio use

• Compatible with Windows XP, Vista, 7 and 8 (32 and 64Bit)

The choice of studios worldwide, WinPlus Studio software is an extremely powerful and versatile prompting package. User-friendly drop down menus and configurable display options add to its versatility. The WinPlus Studio package comes complete with an Ultra Xbox, which provides three video outputs (PAL/NTSC, SDI) and Genlock option. Also included is a configurable 5 button Deskpad Optical Scroll Control.

WinPlus Studio is laptop compatible. Based on our successful XBOX USB external box solution for prompting, the XBOX ULTRA provides enhanced features and capabilities making it ideal, especially for portable prompting. Just plug it into a laptop or PC via the USB 2.0 interface. The video output is standard composite PAL or NTSC and SDI. It runs with exactly the same WinPlus versions that run with the PCI Prompt Card, no additional operator training will be required. USB 2.0 allows faster response time from controllers. Next & Previous story selection are instant with no lag, faster editing and on screen changes.

The Genlock input can be used as the Opto Connection. This input is self seeking with no jumper changes required on the board. In essence, you can now run 100-150 metres from the Xbox Ultra to a control device or a Smart Combi via the BNC that is marked as Genlock.

Features: 2 x SDI Output, 1 x Composite Output, 1 x SDI Genlock, 1 x Analog Genlock.
