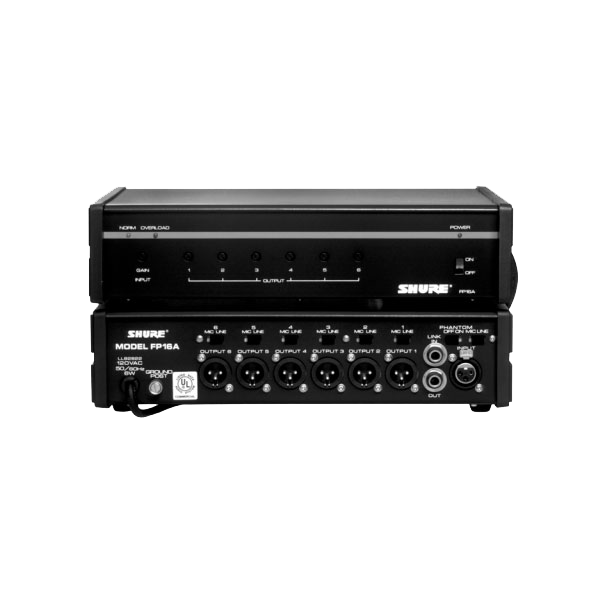

Shure FP-16A


Shure FP-16A

$0.00

The FP16 is a 1-input, 6-output, compact, selfcontained audio distribution amplifier for routing multiple audio signal feeds without incurring loss, distortion, hum or noise. The, intelligent design; reliable components and-meticulous construction of the FP16 make it the optimum choice for broadcast stations-AM, FM, or TV, studios or ENG vans-as well as recording studios, duplicating houses, and telecommunications and production facilities.

Add To Cart

Specs:

  • Frequency Response: 30 to 20,000 Hz, ±2 dB
  • Voltage Gain: -30 - 90 dB
  • Input Impedance: Mic 150 Ω, Line 5k Ω
  • Output Impedance: Mic 150 Ω, Line 650 Ω
  • Equivalent Input Noise: -129 dBV
  • Equivalent Input Hum and Noise: -127 dBV
  • Output Noise: -65 dBV maximum (output control full clockwise [on])
  • Output Hum and Noise: -65 dBV max. (output control up, input control down)
  • Distortion: 0.4% THD
  • Common Mode Rejection 65 dB minimum with input of -20 dBV at 100 Hz
  • Phantom Power: 30 V DC nominal, 3.3k series resistance, automatically disabled with input switch in Line position
  • Operating Voltage: AC Operation 120 or 240 Vac ± 10% (internally selectable), 50/60 Hz, 5.5W, DC Operation 27 V DC
  • Dimensions: 79.5 x 310 x 230 mm
  • Weight Net: 2.75 kg
  • (at 1 kHz) Inputs *Dependent on input control setting.
  • Outputs OUTPUT IMPEDANCE (at 1 kHz) OUTPUT CLIPPING FOR USE WITH ACTUAL LEVEL AT 1 kHz Mic 150 ohms 0.5 ohms - 34 dBV Line 600 ohms 180 ohms + 16 dBV Link 600 ohms or 100 ohms + 16 dBV greater or less
  • Noise Equivalent Input Noise: -129 dBV (low-impedance microphone, 150 ohms, 300 to 20,000 Hz) into 600-ohm load at full gain
  • Equivalent Input Hum and Noise: -127 dBV (lowimpedance microphone, 150 ohms, 20 to 20,000 Hz) into 600-ohm load at full gain
  • Output Noise: -90 dBV maximum (output control full counterclockwise [off]), -65 dBV maximum (output control full clockwise [on]) (input control down, 300 to 20,000 Hz) Output Hum and Noise: -75 dBV maximum (output control down), -65 dBV max. (output control up, input control down, 20 to 20,000 Hz)
